Product Application
Epoxy super wear-resistant top paint is mainly used in hospitals, food, parking lots, pharmaceutical chemistry, automobiles, laboratories, and other fields.

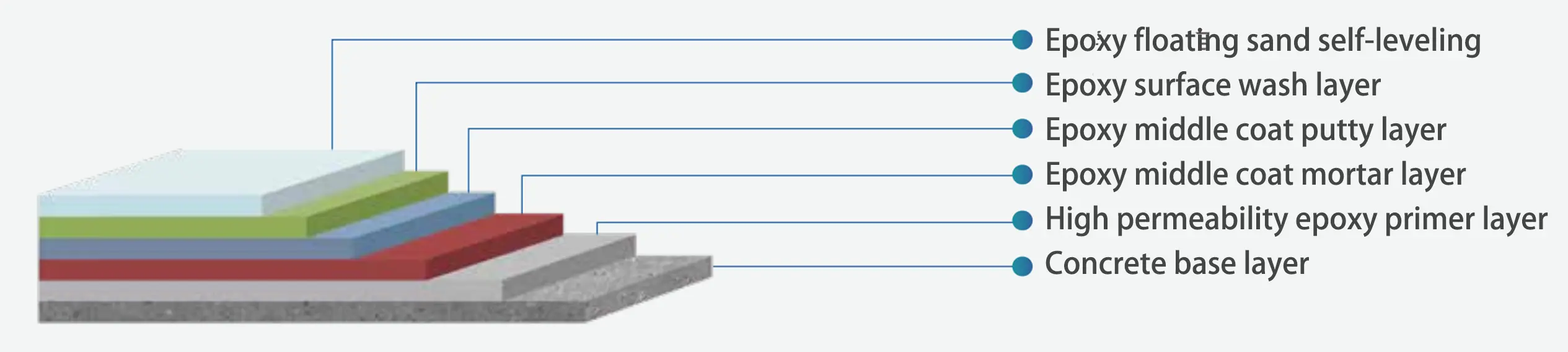

Epoxy Super Wear-resistant Top Paint Coating Structure
Construction Technology
| Construction sequence | Construction process | Optional materials | Material quantity | Construction method |
| 1 | Concrete base layer | Grinding | ||
| 2 | Epoxy primer layer | KS-101 epoxy floor paint primer | 0.15-0.20kg/m2 | Scraping |
| 3 | Epoxy mid-coat mortar layer | KS-102 epoxy floor paint mid-coat | 0.30-0.40kg/m² | Scraping |
| 4 | Epoxy mid-coat putty layer | KS-102 epoxy floor paint mid-coat | 0.10-0.15kg/m² | Scraping |
| 5 | Epoxy wash layer | KS-107 epoxy super wear-resistant topcoat | 0.05-0.10kg/m² | Roller coating |
| 6 | Epoxy super wear-resistant topcoat | KS-107 epoxy super wear-resistant topcoat | 2.00-2.50kg/m² | Trowel coating |
| Process name | Specific practices and requirements |
| Base surface treatment | Clean up the dust, gravel, and other debris on the base surface to be constructed, and polish the base surface with a professional grinder. For the local unevenness and cracks of the base surface, deep cutting and cleaning are carried out and then filled with epoxy resin mortar. |
| Primer layer | After vacuuming the base surface, epoxy primer can be applied while the base surface is being treated. Use high-solid epoxy primer (main paint and curing agent are mixed in proportion and stirred evenly), and roll it evenly with a roller without missing any paint. |
| Mortar layer | After the base surface primer coating construction is completed, epoxy mortar floor construction is carried out. The purpose is to increase the ground's resistance to heavy pressure and impact. After mixing and stirring the color paint and curing agent in proportion (weight ratio) evenly, slowly add an appropriate amount of quartz sand (mesh number: 80~140 mesh); use a toothed trowel to scrape and make the surface smooth. |
| Putty layer | Mix the paint and curing agent in proportion, stir well, add the appropriate amount of quartz powder and stir, scrape once with a trowel, wait for the first coat to dry, then polish and scrape the second coat to make the surface smooth. |
| Color paint coating | Roller coating with epoxy paint makes the floor more beautiful and smooth. |
| Topcoat coating | Use a roller to scrape the floor with an epoxy topcoat and use a roller to scrape at the same time to enhance the wear resistance and gloss of the floor. |
| Maintenance | After the topcoat is completed, move the relevant construction materials and tools away from the site, seal and protect the finished surface tightly, and allow people to enter at least 24 hours later. Walk, and do not bring in mud and sand. It usually takes 7 days for the paint film to fully cure, and other engineering construction, transportation, installation, and other construction should be avoided during this period. Acceptance criteria: The overall color of the floor is consistent, with no bubbling, and no shedding (epoxy orange peel anti-slip floor is divided into large orange peel and small orange peel, and the construction process is almost the same, mainly in the composition and ratio of the topcoat). |
Color Customization
Finished Product Maintenance
·After the epoxy floor is constructed, it needs to be cured for 7-10 days before it can be put into use. During the curing period, water or other solutions should be avoided from soaking the surface.
·It is recommended that personnel entering the workshop change into rubber-soled shoes to avoid bringing mud and sand from outside into the workshop and scratching the floor.
·For hardware such as iron chairs, iron tables, iron shelves, etc., it is recommended to wrap their feet with soft plastic or rubber to avoid scratching the floor during use.
·The forklift needs to fully lift the pallet off the ground. Please pay special attention to the pallet corners when turning, and do not scratch the floor.
·Please use a soft mop or a wet and dry vacuum cleaner to clean the floor. It can be cleaned with clean water or detergent.
·Before the equipment enters the factory, it is recommended to lay a hard cardboard box as a bottom to avoid scratching the floor during transportation of the equipment.
·Please use hard or elastic rubber wheels for the wheels of carts and pallets. It is recommended to use them separately inside and outside the factory.
