Product Application
Epoxy anti-static finishes are mainly used in electronics, food, precision instruments, pharmaceutical chemicals, communication equipment, electricity, and other fields.

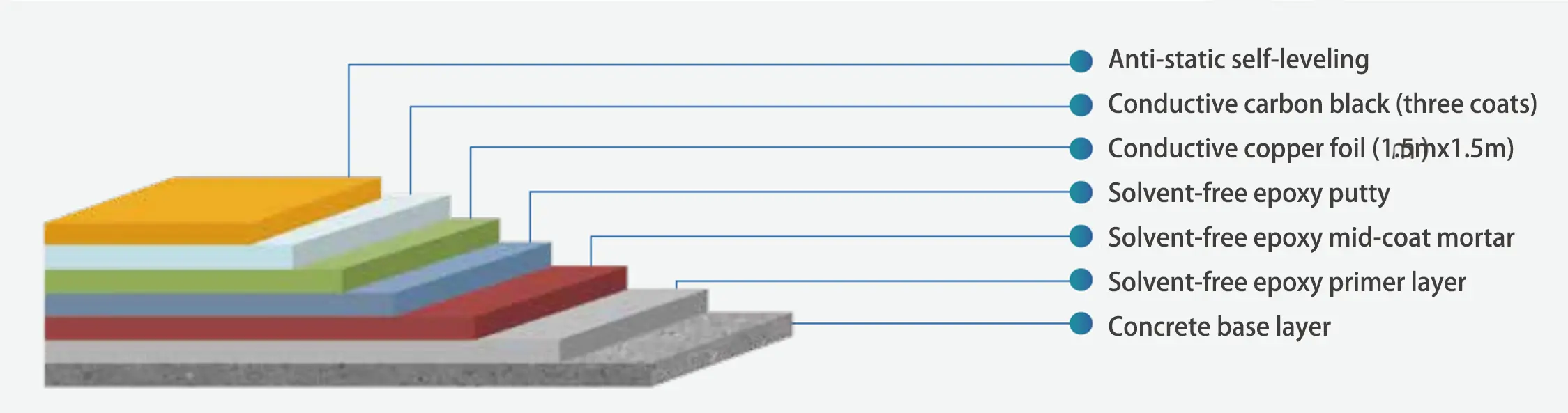

Epoxy Anti-static Finish Coating Structure
Construction Technology
| Construction sequence | Construction process | Optional materials | Material quantity | Construction method |
| 1 | Concrete base layer | Sanding | ||
| 2 | Solvent-free epoxy primer layer | KS-101 epoxy floor paint primer | 0.15-0.20kg/m² | Scraping |
| 3 | Solvent-free epoxy mid-coat mortar layer | KS-102 epoxy floor paint mid-coat | 0.30-0.40kg/m2 | Scraping |
| 4 | Solvent-free epoxy putty layer | KS-102 epoxy floor paint mid-coat | 0.10-0.15kg/m² | Scraping |
| 5 | Conductive copper foil | 1.5m x1.5m | Paving | |
| 6 | Conductive mid-coat (putty) layer | KS-106 epoxy antistatic topcoat | 0.25-0.30kg/m² | Scraping 3 times |
| 7 | Epoxy antistatic floor topcoat | KS-106 epoxy antistatic topcoat | 0.70-1.00kg/m² | Troweling |
| Process name | Specific practices and requirements |
| Base surface treatment | First, use a special grinder to dry-grind the base floor and smooth it, then clean it up. Then, apply the primer A: B group in proportion with a mixer and stir evenly for three minutes. Use a scraper to scrape the floor. After it dries slightly, it will absorb a large amount of oil and turn white. The primer should be filled. |
| Mortar layer | After mixing the middle coating, quartz sand, and talcum powder into epoxy mortar, scrape them with a scraper, and then fill some defective holes. |
| Anti-static mortar layer | After mixing the anti-static middle coating, quartz sand, and talcum powder, mix them into anti-static epoxy mortar, scrape them with a scraper, and then fill some defective holes. |
| Dust-free polishing | After the putty is dry, use a dust-free grinder to grind the whole thing, eliminate the knife marks, and absorb dust. |
| Conductive copper platinum cloth | Use conductive copper platinum to crisscross and distribute them at a spacing of 1 meter, and connect the tail end to the conductive device of the base ground with a standard of 6 meters to form a conductive network. |
| Ink selenium carbon putty layer | After mixing graphite selenium carbon black, curing agent, and talcum powder evenly, mix it into epoxy putty, scrape it with a scraper, and then fill some defective holes. |

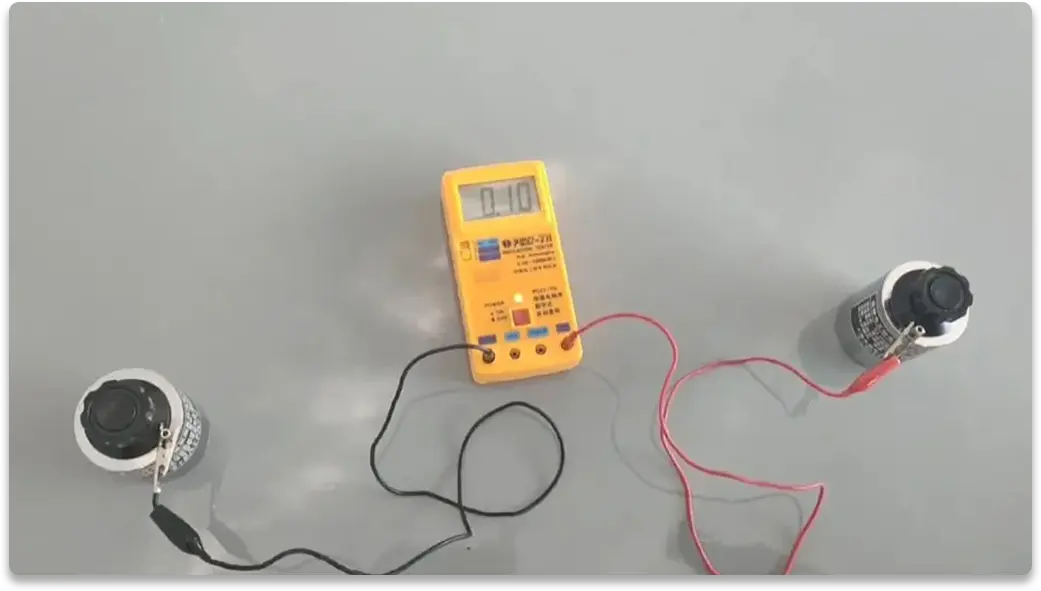

| Topcoat layer | After mixing the epoxy anti-static self-leveling topcoat, curing agent, and talcum powder evenly, mix it into epoxy putty, scrape it with a scraper, and then fill some defective holes. After curing, use a PC27-1 digital automatic range resistance meter to measure the conductivity of the formed coating. The average surface and volume resistance is 104~107Ω. Apply epoxy anti-static self-leveling topcoat. |
| Maintenance | After the topcoat is completed, the relevant construction materials and tools will be moved away from the site, and the finished surface will be tightly sealed and protected. People will be allowed to enter and walk after at least 24 hours, and mud and sand must not be brought in. It usually takes 7 days for the paint film to be completely cured. During this period, other engineering construction, transportation, installation, and other construction should be avoided. Acceptance criteria: The overall color of the floor is consistent, without blistering or peeling (epoxy orange peel anti-slip floor is divided into large orange peel and small orange peel, the construction process is almost the same, mainly in the topcoat composition and ratio are slightly different). |
Color Customization
Finished Product Maintenance
·After the epoxy floor is constructed, it needs to be cured for 7-10 days before it can be put into use. During the curing period, water or other solutions should be avoided from soaking the surface.
·It is recommended that personnel entering the workshop change into rubber-soled shoes to avoid bringing mud and sand from outside into the workshop and scratching the floor.
·For hardware such as iron chairs, iron tables, iron shelves, etc., it is recommended to wrap their feet with soft plastic or rubber to avoid scratching the floor during use.
·The forklift needs to fully lift the pallet off the ground. Please pay special attention to the pallet corners when turning, and do not scratch the floor.
·Please use a soft mop or a wet and dry vacuum cleaner to clean the floor. It can be cleaned with clean water or detergent.
·Before the equipment enters the factory, it is recommended to lay a hard cardboard box as a bottom to avoid scratching the floor during transportation of the equipment.
·Please use hard or elastic rubber wheels for the wheels of carts and pallets. It is recommended to use them separately inside and outside the factory.
